Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration

PE coated aluminum plastic sheet

3mm ACP bathroom wall decoration

PVDF aluminum composite panel

起源の場所:

中国

ブランド名:

Aludong

証明:

CE; ISO9001; SGS; RoHS

連絡 ください
引金 を 求め て ください
製品詳細
アルミニウム合金:
AA1100; AA3003
パネルの厚さ:
標準 3mm、4mm、オプション: 1.5mm ~ 8mm
アルミニウムの厚さ:
標準0.3mm、オプション:0.03~0.6mm
パネルの長さ:
標準 2440mm、オプション: 350mm、6000mm、または 20GP コンテナに入れることができるその他の長さ
パネル幅:
標準 1220mm、オプション: 1000mm、1500mm、1000mm ~ 1750mm
重さ:
3mm パネルの厚さに基づいて 3 ~ 4.5kg/m²。パネル厚さ 4mm に基づいて 4 ~ 4.5kg/m²
コーティング:
PEコーティング
証明:
CE/SGS/ISO9001/RoHS
保証:
PEは5~8年保存可能
顧客のサイズ:
利用可能
支払い条件:
20%-40%
ハイライト:

PE coated aluminum plastic sheet

,

3mm ACP bathroom wall decoration

,

PVDF aluminum composite panel

支払いと送料の条件
最小注文数量
600平方メートル
パッケージの詳細
木製パレット;木製ケース。ヌードパッキング
受渡し時間
ピークシーズンのリードタイム: 1 か月。オフシーズンのリードタイム: 15 営業日以内
支払条件
T/T、L/C
供給の能力
年間800万平方メートルのアルミニウム複合パネルの生産能力。
関連製品
連絡 ください
86-371-60292098
今連絡してください
製品説明
Overview

ALUDONG PE aluminum composite panel consists of two layers of aluminum skin sandwiching a PE core, manufactured using a continuous extrusion process. PE coating offers excellent adhesion to the substrate. Color-coated steel plates with PE coating are easy to process, cost-effective, and available in a wide range of options, with great flexibility in color and gloss selection. Under normal outdoor exposure conditions, the corrosion resistance service life can reach 7 to 8 years.
For solid and metallic colors, the gloss level is typically 30%–40% on the Gardner scale, making them ideal for architectural applications. For special effect colors, the gloss level ranges from 70%–80% on the Gardner scale. Due to their high gloss finish, panels in special effect colors require extra care during design, fabrication, and installation.

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 0Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 1

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 2Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 3

Characteristics
  • 1. High resistance to peeling
  • 2. Superior weather resistance
  • 3. Lightweight and easy to process
  • 4. Excellent fire resistance
  • 5. Even coating
  • 6. Wide range of colors
  • 7. Easy maintenance
  • 8. High impact resistance
Applications
  • Office buildings
  • Shopping centers
  • Industrial buildings
  • Airports
  • Hotels
  • Bus centers
  • Hospitals
  • Schools
  • Supermarkets
  • Residential buildings
Technical Data

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 4

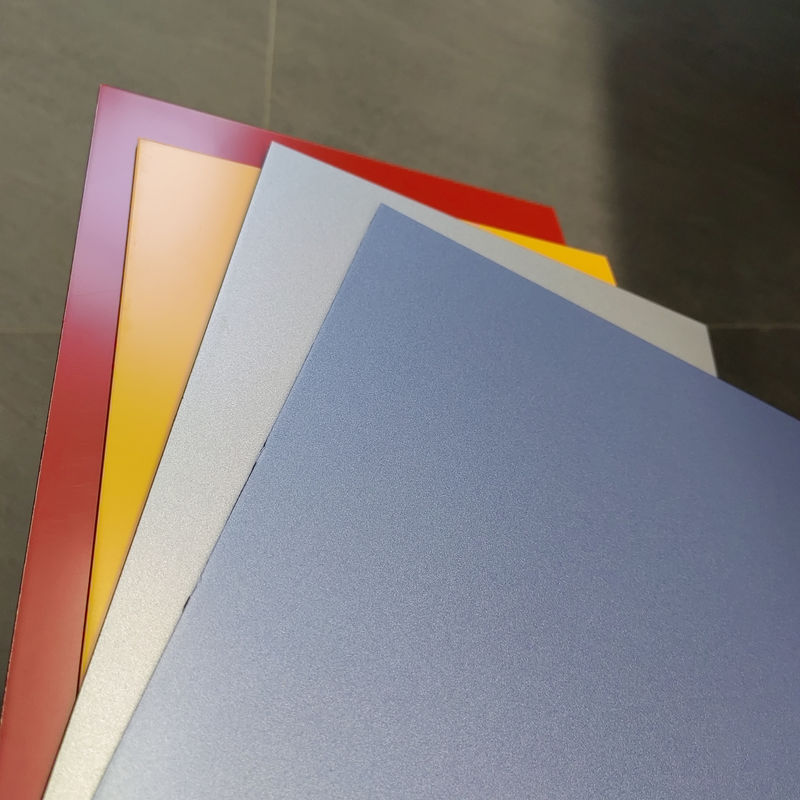

Color Chart

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 5

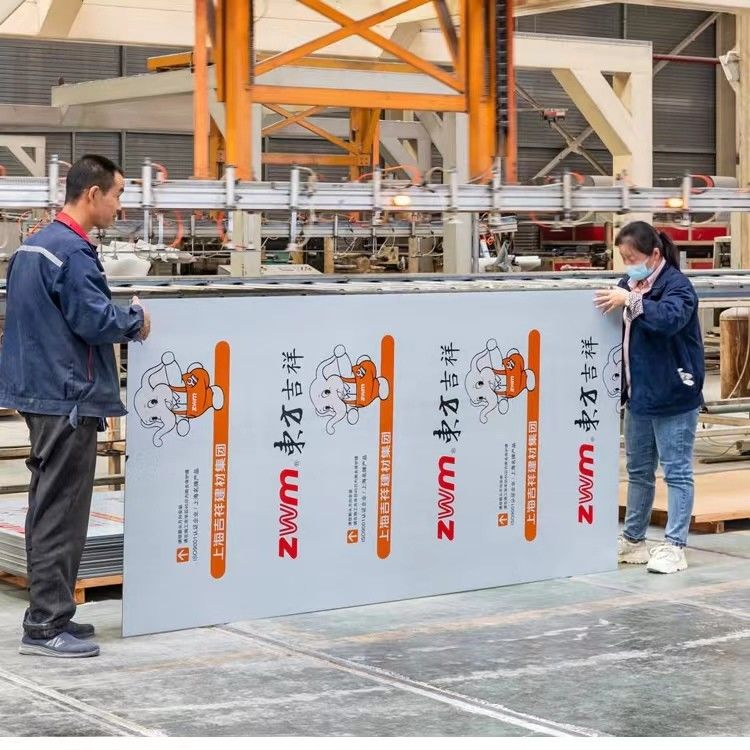

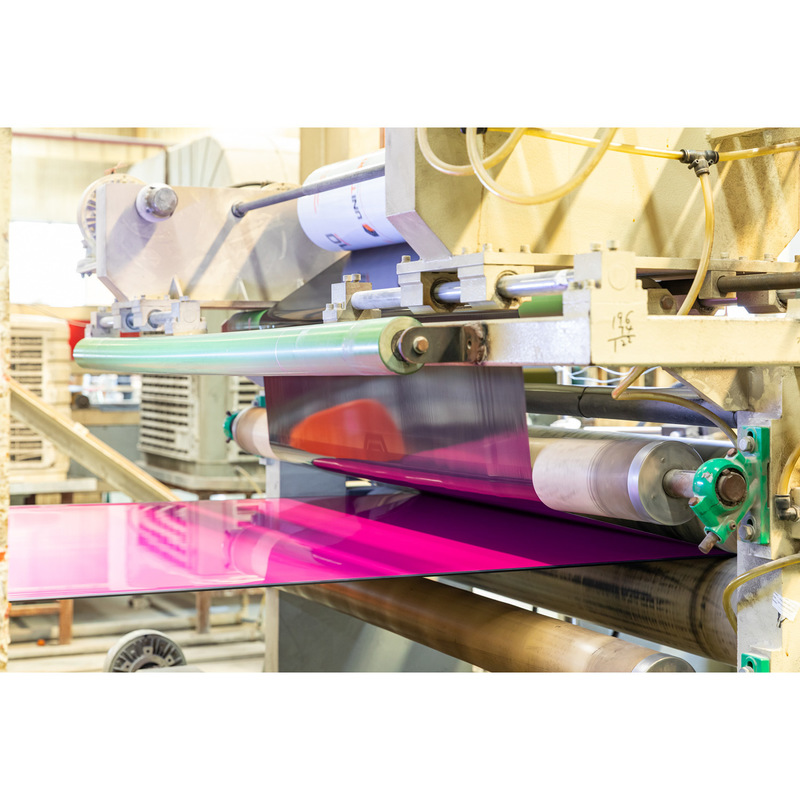

Our Factory

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 6Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 7

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 8Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 9

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 10Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 11

Our Certification

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 12Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 13Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 14

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 15Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 16Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 17

Our Project

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 18Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 19Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 20

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 21Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 22

Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 23Factory Direct 3mm 4mm PE Coated Aluminum Plastic Sheet ACP/ACM for Interior Bathroom Kitchen Wall Decoration 24

FAQ
1) What is the minimum order quantity?
100 pcs for aluminium composite panel for one color
2)How long can I get a quote?
The quotation can be provided not longer than 24 hours on condition that we know all detaile
3) Can I get a sample?
Yes we offer free samples. Delivery cost is to be paid by clients
4) Can I buy installation accessories from you?
Yes, we provide wet wall and dry wall system installation accessories.If you want to know more about the installation of aluminium composite panel, pls click the website:www.zwm.com.cn
5). Why can I trust you and place order with you?

1. We are manufacture and supplier of aluminum composite panel in china with over 17 years's experience.

2. we have 10 ACP production lines and 6 large coating lines keep fastest delivery,our output is around 35000 pieces per day with size of 1220*2440mm

3. Best price could be offered as we have own alu coil factory.

4. Big Group organization with 12 subsidiaries which means we have enough cash flow to offer your best payment terms.

Have any questions? We are always here to help. Please don't hesitate to contact us – we would love to hear from you and discuss how our ACP can meet your project needs.
